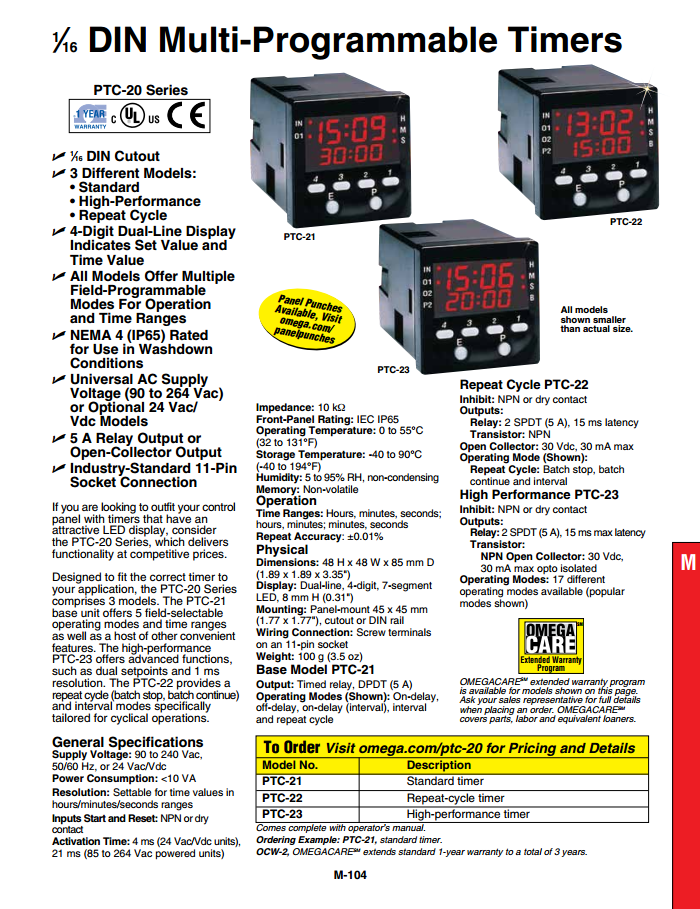

1 16 DIN多个可编程LED定时器
产品描述

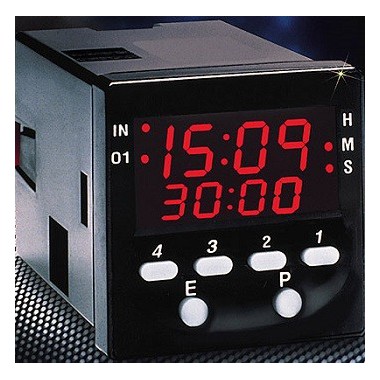

If you are looking to outfit your control panel with timers that have an attractive LED display, consider the new PTC-20 series that deliver functionality at competitive prices.
Designed for you to best fit the correct timer to your application, the PTC-20 series is divided into three separate models. The PTC-21 base unit offers five field-selectable operating modes and time ranges as well as a host of other convenient features. The high performance PTC-23 model offers advanced functions such as dual setpoints and 1 ms resolution. The PTC-22 repeat cycle model provides a repeat cycle (batch stop, batch continue) and interval modes specifically tailored for cyclical operations.
With ultimate simplicity in mind, the PTC-20 series utilizes an intuitive button-per-digit method for setpoint input and easy to follow scroll-thru menus for programming. The dual line display optimizes the interface by indicating both the present time value and the setpoint, while up to 8 annunciator lights provide status. Multi-level security enables shop floor access to be custom tailored to your needs.
Intended for tough industrial conditions, the PTC-20 Series offer a NEMA-4/IP65 rated front panel and a high degree of noise immunity. Choose from models with a 5 amp relay, which can directly drive a load, or solid state outputs for high speed applications.
GENERAL SPECIFICATIONS
Supply Voltage: 90 to 240 Vac, 50/60 Hz, or 24 Vac/Vdc
Power Consumption: <10 VA
Resolution: Settable for time values in hours/minutes/seconds ranges
Inputs Start and Reset: NPN or dry contact
Activation Time: 4 ms (24 Vac/Vdc units), 21 ms (85 to 264 Vac powered units)
Impedance: 10 kΩ
Front-Panel Rating: IEC IP65
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -40 to 90°C (-40 to 194°F)
Humidity: 5 to 95% RH, non-condensing
Memory: Non-volatile Operation
Time Ranges: Hours, minutes, seconds; hours, minutes; minutes, seconds
Repeat Accuracy: ±0.01% Physical
Dimensions: 48 H x 48 W x 85 mm D (1.89 x 1.89 x 3.35")
Display: Dual-line, 4-digit, 7-segment LED, 8 mm H (0.31")
Mounting: Panel-mount 45 x 45 mm (1.77 x 1.77"), cutout or DIN rail
Wiring Connection: Screw terminals on an 11-pin socket
Weight: 100 g (3.5 oz)
Base Model PTC-21
Output: Timed relay, DPDT (5 A)
Operating Modes (Shown): On-delay, off-delay, on-delay (interval), interval and repeat cycle
Repeat Cycle PTC-22
Inhibit: NPN or dry contact
Outputs:
Relay: 2 SPDT (5 A), 15 ms latency
Transistor: NPN
Open Collector: 30 Vdc, 30 mA max
Operating Mode (Shown):
Repeat Cycle: Batch stop, batch continue and interval
High Performance PTC-23
Inhibit: NPN or dry contact
Outputs:
Relay: 2 SPDT (5 A), 15 ms max latency
Transistor:
NPN Open Collector: 30 Vdc, 30 mA max opto isolated
Operating Modes: 17 different operating modes available (popular modes shown)
