电池供电电源，用于回路测试PSB24 Series

Ideally Suited for Use with Microprocessor Systems, and Test Equipment

• 2 Models --- 9V dc powered, small and light weight
  4 AA battery powered for long life testing

• Ideally Suited for Use with Microprocessor Systems, and Test Equipment

• Efficient Switching Regulator Allows Nearly 100% of Available Battery Power

• 产品描述

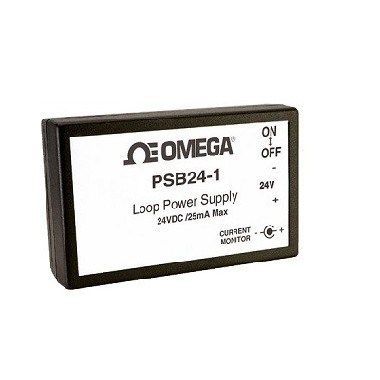

  PSB24-1 and PSB24-4 are designed for easy portability for field testing. The PSB24-1 is small lightweight (powered by one 9V battery). The PSB24-4 is slightly larger and powered by (4 “AA” batteries). It provides longer usage (1 month normal use). Perfect for longer duration testing and set-up applications.

  SPECIFICATIONS
  Input Voltage:
      PSB24-1: (1) 9V battery (included)
      PSB24-4: (4) AA batteries (included)
  Dimensions:
      PSB24-1: 96.5 H x 60.96 W x 22.86 mm dia (3.8 x 2.4 x 0.9")
      PSB24-4: 147 H x 91.4 W x 33.02 mm dia (5.8 x 3.6 x 1.3")
  Loop Power Supply: 24 Vdc/25 mA maximum
  Weight:
      PSB24-1: 113 g (4 oz)
      PSB24-4: 204 g (7.2 oz)
