双通道自整定温度控制器CYC325
Supports Diode, RTD, and Thermocouple Sensors
Operates Down to 1.2 K with Appropriate Sensors
2 Sensor Inputs
Supports Diode, RTD, and Thermocouple Sensors
Sensor Excitation (Current Reversal Eliminates Thermal EMF Errors for Resistance Sensors)
2 Autotuning Control Loops: 25 and 2 W Max
Control Loop 2: Variable Vdc source from 0 to 10 V Max
IEEE-488 and RS232C Interfaces
产品描述

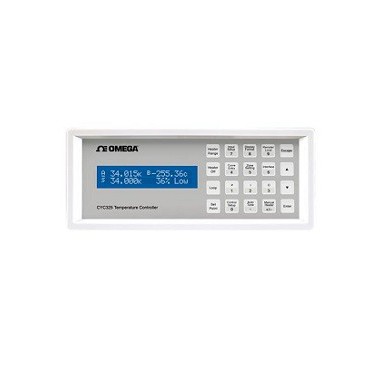

The CY325 Series dual-channel temperature controller is capable of supporting nearly any diode, RTD, or thermocouple temperature sensor. Two independent PID control loops with heater outputs of 25 and 2 W are configured to drive either a 50 or 25 Ù load for optimal control flexibility. Designed with ease of use, functionality, and value in mind, the CYC325 Series is ideal for general-purpose laboratory and industrial temperature measurement and control applications.
SPECIFICATIONS
Thermometry
Number of Inputs: 2
Input Configuration: Each input is factory configured for either diode/RTD or thermocouple
Isolation: Sensor inputs optically isolated from other circuits but not each other
A/D Resolution: 24-bit
Input Accuracy: Sensor dependent, refer to input specifications table
Measurement Resolution: Sensor dependent, refer to input specifications table
Max Update Rate: 10 rdg/s on each input (except 5 rdg/s on input A when configured as thermocouple)
Filter: Averages 2 to 64 input readings
Sensor Input Configuration Diode/RTD:
Measurement Type: 4-lead differential
Excitation: Constant current with current reversal for RTDs
Supported Sensors: Diodes, silicon, GaAlAs; RTDs, 100 ΩPlatinum, 1000 Ω Platinum, germanium, carbon-glass, CernoxTM, and RoxTM
Standard Curves: CY7 and CY670, PT-100, PT-1000, RX-102A, RX-202A
Input Connector: 6-pin DIN
Thermocouple:
Measurement: 2-lead, room temperature, compensated
Excitation: N/A
Supported Sensors: Most thermocouple types
Standard Curves: Type E, Type K, TypeT, AuFe 0.07% vs Cr, AuFe 0.03% vs Cr
Input Connector: Ceramic isothermal block
Control
Control Loops: 2
Control Type: Closed loop digital PID with manual heater output or open loop
Tuning: Autotune (1 loop at a time), PID, PID zones
Control Stability: Sensor dependent, see input specification table
PID Control Settings:
Proportional (Gain): 0 to 1000 with 0.1 setting resolution
Integral (Reset): 1 to 1000 (1000/s) with 0.1 setting resolution
Derivative (Rate): 1 to 200% with 1% resolution
Manual Output: 0 to 100% with 0.01% setting resolution
Zone Control: 10 temperature zones with P, I, D, manual heater out, and heater range
Setpoint Ramping: 0.1 K/min to 100 K/min
Safety Limits: Curve temperature, power up heater off, short circuit protection
Front Panel:
Display: 2-line, 20-character, liquid crystal display with 5.5 mm (0.216") character height
Number of Reading Displays: 1 to 4
Display Units: K, °C, V, mV,
Reading Source: Temperature, sensor units
Display Update Rate: 2 rdg/s
Temp Display Resolution: 0.001° from 0 to 99.999°, 0.01° from 100 to 999.99°, 0.1° above 1000°
Sensor Units Display Resolution: Sensor dependent; to 5 digits
Other Displays: Setpoint, heater range, and heater output; user selected
Setpoint Setting Resolution: Same as display resolution (actual resolution is sensor dependent)
Heater Output Display: Numeric display in percent of full scale for power or current
Heater Output Resolution: 1%
Display Annunciators: Control input, remote, autotune
Keypad: 20-key membrane, numeric and specific functions
Front Panel Features: Front panel curve entry, keypad lock-out
Interface
IEEE-488 Interface Features: SH1, AH1, T5, L4, SR1, RL1, PP0, DC1, DT0, C0, E1
Reading Rate: To 10 rdg/s on each input
Software Support: LabVIEWTM driver; consult factory for availability
Serial Interface:
Electrical Format: RS232C
Baud Rates: 9600, 19200, 38400, 57600
Connector: 9-pin D-style, DTE configuration
<
