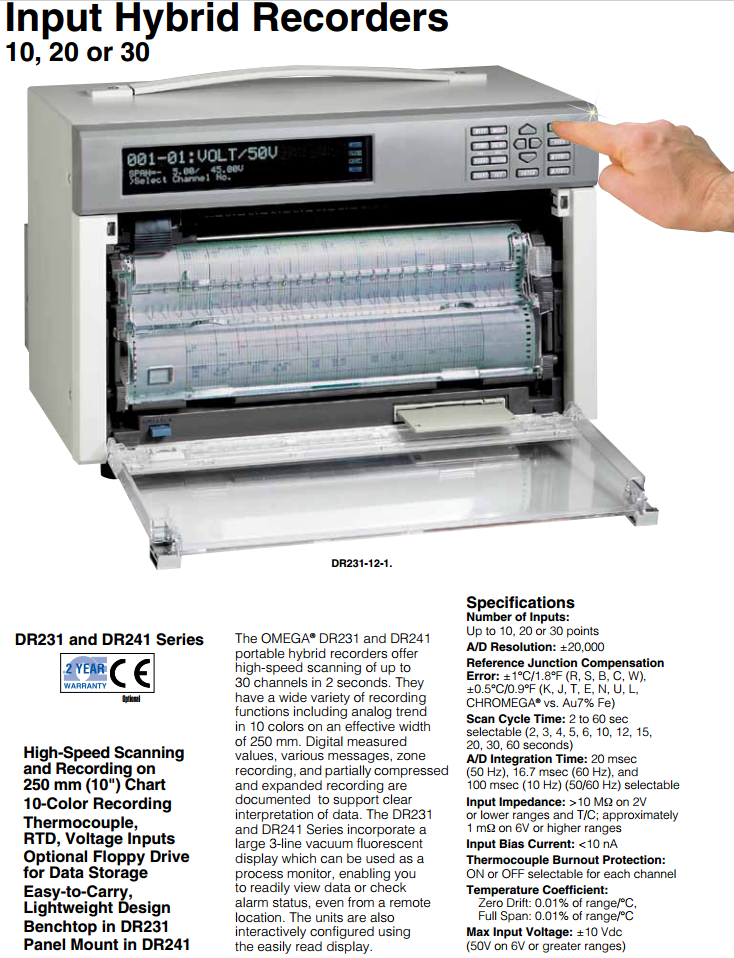

混合输入记录仪DR231 and DR241 Series
10、20或30输入，T/C，RTD，电压输入High-Speed Scanning and Recording on 250 mm (10
High-Speed Scanning and Recording on 250 mm (10") Chart
Ten-Color Recording
Thermocouple, RTD, Voltage Inputs
Optional Floppy Drive for Data Storage
Easy-to-Carry, Lightweight Design
Benchtop in DR231
Panel Mount in DR241
产品描述
The DR231 and DR241 series has been discontinued. Please see the RD5100 Series as a possible alternative or contact our Data Acquisition Engineering department.

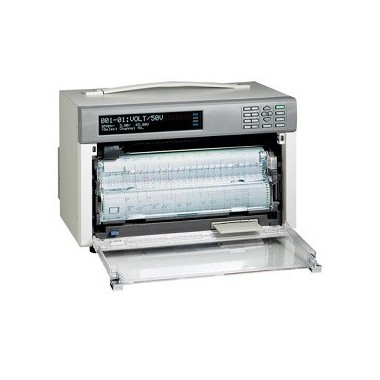

The OMEGA® DR231 and DR241 portable hybrid recorders offer high-speed scanning of up to 30 channels in 2 seconds. They have a wide variety of recording functions including analog trend in ten colors on an effective recording width of 250 mm. Digital measured values, various messages, zone recording, and partially compressed and expanded recording are recorded to support clear interpretation of data. The recorders incorporate a large 3-line vacuum fluorescent display which can be used as a process monitor, enabling you to readily view data or check alarm status, even from a remote location. The units are also interactively configured using the easily read display.
