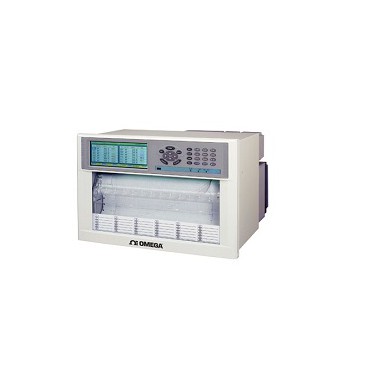

美国omega 混合图表记录仪RD5100 Series
单价 面议对比
询价 暂无
浏览 40
发货 广东深圳市付款后3天内
品牌 美国omega
过期 长期有效
更新 2024-08-28 15:43

详细信息

混合图表记录仪RD5100 Series

High Speed Scanning at 36 Points/Sec and High-Speed Recording



  • High Speed Scanning at 36 Points/Sec and High-Speed Recording

  • High Accuracy of 0.05%

  • Various Industrial Values Can be Measured at the Same Time with Selectable Ranges

  • Superior Ease of Operation

  • Engineering Port is Provided (USB)

  • Anti-Noise Countermeasures

  • Communication Interfaces are Available

  • Recording and Calculation of Data Communication Input

  • 产品描述

    RD5100 series chart recorders are 250 mm (10") hybrid recorders with multi-range input. Innovative design high performance recorder provides high accuracy, ±0.05%; high speed scanning, 0.1 second for 36 points and high speed recording, 1 line in 3 seconds. Simple operational keys and PC setting functions drastically improved usability of recording system.

    SPECIFICATIONS
    Input
    Number of Measuring Points: 12, 24 and 36 points
    Input Types: Universal (refer to the table of inputs)
    Range Setting: Input type and range are set with front keys
    Scale Setting: The minimum and maximum values and unit are set for each point with front keys
        Setting Range: -30,000 to 30,000
        Decimal Points: Optional setting
    Indication Accuracy: Refer to the table of inputs on page S-35d
    Temperature Drift: 0.1% FS/ 10°C
    Measuring Period: 0.1 sec/channel
    Reference Junction Compensation Accuracy:
        K, E, J, T, N, Platinel II: ±0.5°C (33°F) or less [0°C (32°F) or more when measuring]
        R, S, WRe5-WRe26, NiMo-Ni, U, L: ±1.0°C (34°F) or less [only when the ambient temperature is 23°C (73°F) ±5°C (41°F)]
    Input Resolution: Approx. 1/40,000 (standard range conversion)
    Burnout: Select with/without burnout for each input
    Allowable Signal Source Resistance: Thermocouple Inputs, DC Voltage
        Input (10 mV): 500Ω or less (without burnout) DC Voltage Input (Except 10 mV): 100Ω or less     Resistance Thermometer Inputs: 10Ω or less/ line, three lines are common, Pt100, JPt100
    Input Resistance:
        Thermocouple Input, DC Voltage Input:
     Approx. 1MΩ
    Maximum Input Applied Voltage: ±20 Vdc
    Input Correction: Zero/span correction and shift correction for each channel
    Maximum Common Mode Coltage: 30 Vac (support LVD)
    Common Mode Rejection Ratio: 130dB
    Series Mode Rejection Ratio: 50dB (only when the peak value of noise is below standard range)
    Terminal Board: Detachable type, removable for wire connection

    Recording Specifications
    Recording System: Raster scan system, 10-color wire dot printing
    Recording and Recording Color:
        Analog Recording: Color can be specified for each channel as required 10 colors (red, purple-red, orange, brown, green, yellow-green, blue-green, purple, purple-blue, black) Digital Recording and Logging
        Recording: Black
        Message Printing: Black
        List Printing: Black
    Chart Paper: Fan-fold type; overall width 318 mm (12.5"), total length 20 m (65.6'); effective recording width 250 mm (10") (analog recording)
    Chart Speed: 1 to 1500 mm/H [in 1 mm/H steps]
    Skip Function: Analog recording, digital recording and digital display can be set independently from recording slip
    Recording Compensation: Independent setting of zero spans are available

    Display Specifications
    Digital Display: Color LCD panel RGB (640 x 240 dot)
    Display Size: 149.8 W x 57.4 mm H (5.8 W x 2.25" H)
    Setting Display: Common to digital display*
    Display Contents: Digital display
        Channel Display: One-point/multiple points continuous/sequential indication change Display Measuring Value of
        Each Channel: One-point/multiple points continuous/sequential indication change
        Clock Display: Hour/Minute/ Second/Tag/Unit Chart Speed Display
    Status Display:
        Record On: Lights during recording; LED
        Key Lock: Lights during key lock
        Alarm: Lights during alarm activated; LED
        Chart End: Lights just before record ending
        Fail: Lights during unit abnormal time
    * Sharing LED and setting display

    Alarm Specifications Alarm Display: Occurrence CH No, data is displayed in red when alarm occurs
    Alarm Types: High limit, low limit
    Alarm Setting Method: Individual setting for each point four levels/ channels
    Alarm Output: See option specification
