可编程图表记录仪RD200 and RD2800 Series

Simultaneous Digital Displays of Multipoint Data

• Simultaneous Digital Displays of Multipoint Data

• Universal input The recorders accept total 56 ranges of 10 DC voltage ranges, 35 thermocouple ranges and 11 resistance thermometer ranges, and these ranges can be programmed for each channel.

• Universal power voltage 100VAC to 240VAC, 50/60Hz

• Clear trend and digital printings Cassette type wire-dotting system 6-color ink ribbon for clear trend and digital printings

• Alarm Display/Printings

• Chart illumination Convenient to confirm printed data in night or dark places

• Software Package “KIDS” Available

• Conforms to CE, UL, and CSA Standards

• 产品描述

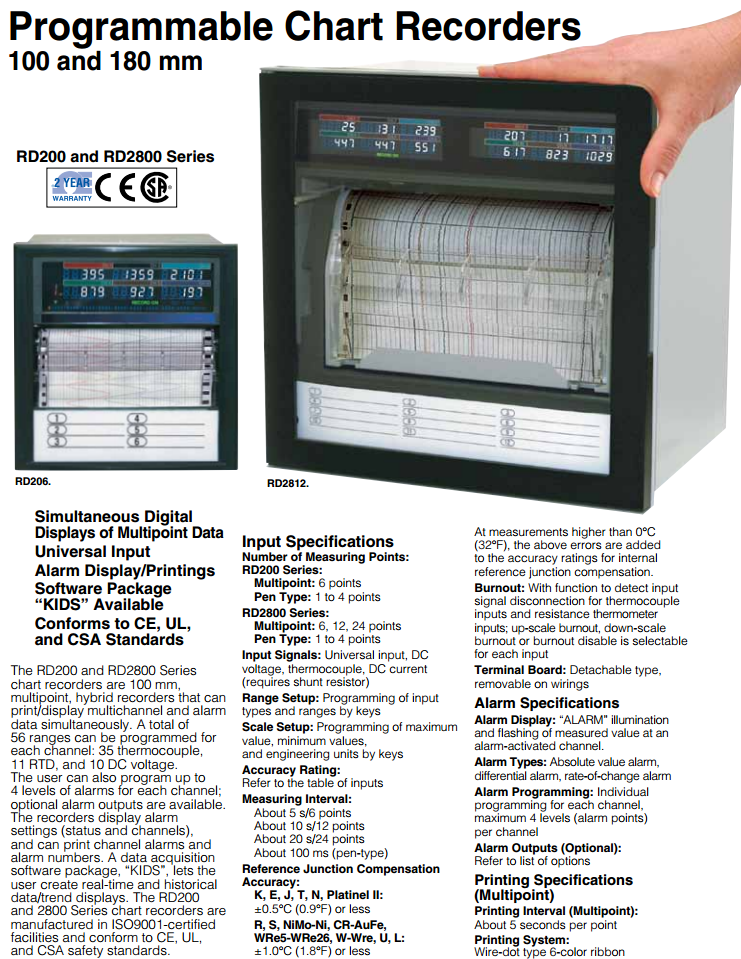

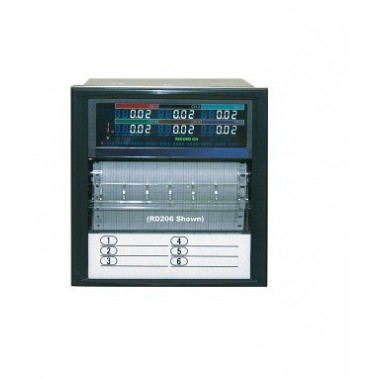

  The RD200 and RD2800 Series chart recorders are 100 mm, multipoint, hybrid recorders that can print/display multichannel and alarm data simultaneously. A total of 56 ranges can be programmed for each channel: 35 thermocouple, 11 RTD, and 10 DC voltage. The user can also program up to 4 levels of alarm for each channel; optional alarm outputs are available. The recorders display alarm settings (status and channels), and can print channel alarms and alarm numbers. A data acquisition software package, “KIDS”, lets the user create real-time and historical data/trend displays. The RD200 and 2800 Series chart recorders are manufactured in ISO9001-certified facilities and conform to CE, UL, and CSA safety standards.

  Data acquisition software package "KIDS" (RD2800-KIDS)
  The "KIDS" is a software package for storing data being measured by RD200 and RD2800 series recorders and for replaying of the stored data.
  Main function and features:
  - Data processing: Up to 5 sets (max. 100 channels) - Real-time data, real-time trend, historical data, historical trend and daily report
  - Communications interfaces: RS-232C, RS-422A or RS-485 - Stored data: Enable to export to Microsoft Excel, Lotus 1-2-3 and other application software
  - OS: Windows 95/98, Windows NT4.0

  Engineering software package "PASS" (RD2800-PASS)
  The "PASS" is a software package, through a communications interface (optional) or a configuration port, for programming parameters of RD200 and RD2800 series recorders by a personal computer.
  Main functions and features:
  - Input parameters: Ranges, scales, tags, engineering units, alarms, burnout
  - Printing parameters: Chart speed, data interval, subtract printing, zone printing, automatic range-shift printing - Operation: Message printing
  - Others: Clock setting, temperature units (ºC, ºF), alarm deadband, communications specification (for programming through a configuration port only)
  - OS: Windows95/98, WindowsNT4.0

•
